Fixed Tanker
Loading Gantry

Our fixed gantries are designed to provide a suitable location for the mounting of our range of tanker access and fall prevention products

We offer a full range of fixed tanker access platforms and gantries, therefore providing your staff with a safe way to access and work on the tops of road and rail tankers. In addition, every gantry is the basis for installing an IFC safe access or tanker loading product.

Fixed Tanker Loading Gantry
Features and benefits

The IFC LP1600 Access Platform is an ideal solution for single-point tanker access. Because it is designed with a 1.6m square working area, this unit can be fitted with a range of equipment including our FlowStep folding stairs, TTSC fall prevention safety cages and ChemLoad or PetroLoad loading arms. In addition, its minimal footprint design makes it an ideal option for sites with restricted space. The LP1600 is ideal where simple operations such as single point loading/unloading, tank venting, hatch opening, or sampling take place. Because our LP1600 range is modular, it can be adapted to client requirements, including height and size of the platform, the orientation of the access stairs, and platform equipment. Here are some more features and benefits:

  • Grated access steps, as well as platform for slip resistance
  • Full height handrail to steps, as well as platform surround
  • Galvanised finish, thus providing a durable weather-proof solution
  • Modular design allows for fast and easy site installation
  • Optional GRP flooring, stainless steel handrail, and painted structure

Take a look at the Gantry
Fixed Tanker Loading Gantry

The technical details

Below you will find all the key technical data and specification for our IFC LP1600 Access Platform. If you would like to discuss this in more detail, then please just get in touch.  Because, we are always happy to help and answer any queries you may have.


  • Type: Space-saving modular pedestal design for small site footprint
  • Large 1.6m square working platform allows fitting of folding stairs, top loading arms and other equipment
  • Anti-slip access steps, platform floor and folding stairs along with safety hand rails and knee bars on steps and platform as standard
  • Main support: Single box column Intermediate support:
  • Single box column Grating and stair treads: Standard open mesh (other types optional)
  • Kicker plate: Included
  • Hand railing: Knee guard/handrail height 34mm OD
  • Foundation mounting: Optional cast-in bolt cage


  • Material of construction: Mild steel
  • Finish: Hot dipped galvanised to BS1461


  • Main deck area: 1600mm x 1600mm, height less than 4.0mtr for a single flight of steps
  • Access stair width: 750mm inside dimension
  • Handrail height: 1050mm
  • Step riser: 220mm

Variations for the LP1600

  • Higher platforms up to 6m, platforms over 4m high require an intermediate platform halfway up the access steps
  • We can fit 800mm wide folding stairs to any of the 3 spare platform sides
  • We can supply and install top loading arms and other equipment
  • Larger platforms for 2600mm wide folding stairs, as well as dual support columns and angled access steps available
  • IFC Inflow also design and install full length gantries fitted with a range of tanker equipment including sliding and wide folding stair options

Relevant industries

Suitable for the following sectors


Cement, Powders
& Aggregates

Bulk Tank

& Beverage

& Inorganics

& Distilleries

Case Study
The Fixed Tanker Loading Gantry in action

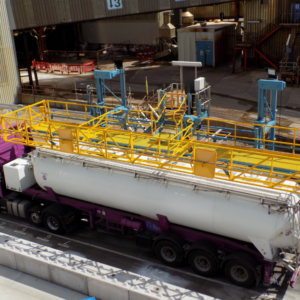

We recently completed a job for cement company Aggregate Industries. Their busy site in Tilbury Docks has many tankers loading and unloading every day, with workers needing to access the tops of the vehicles as a part of operations. Their existing Fall Prevention system utilised mobile solutions that were both inefficient and not up to the high standards of safety they were wanting to maintain on their site. See the solution we created here.
